960 - air spoiler (body) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo デンセイ)drive 2WD (two-wheel drive )
Manufacture period01.1998 - ...grade FX2transmission MT (manual transmission )

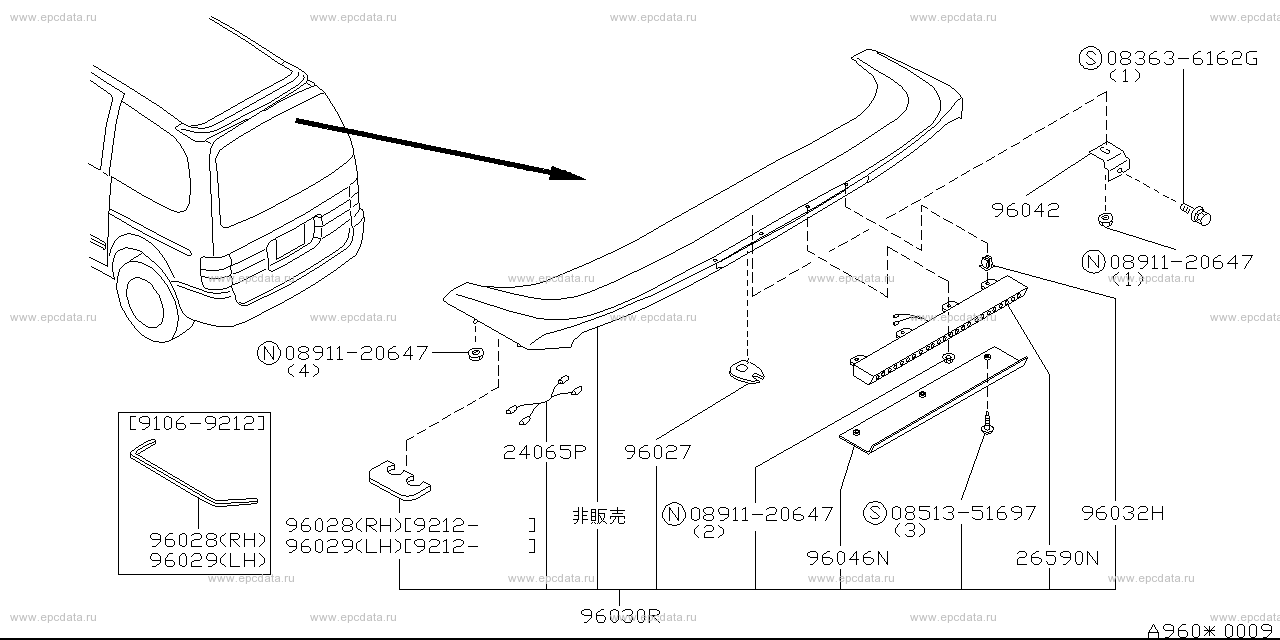

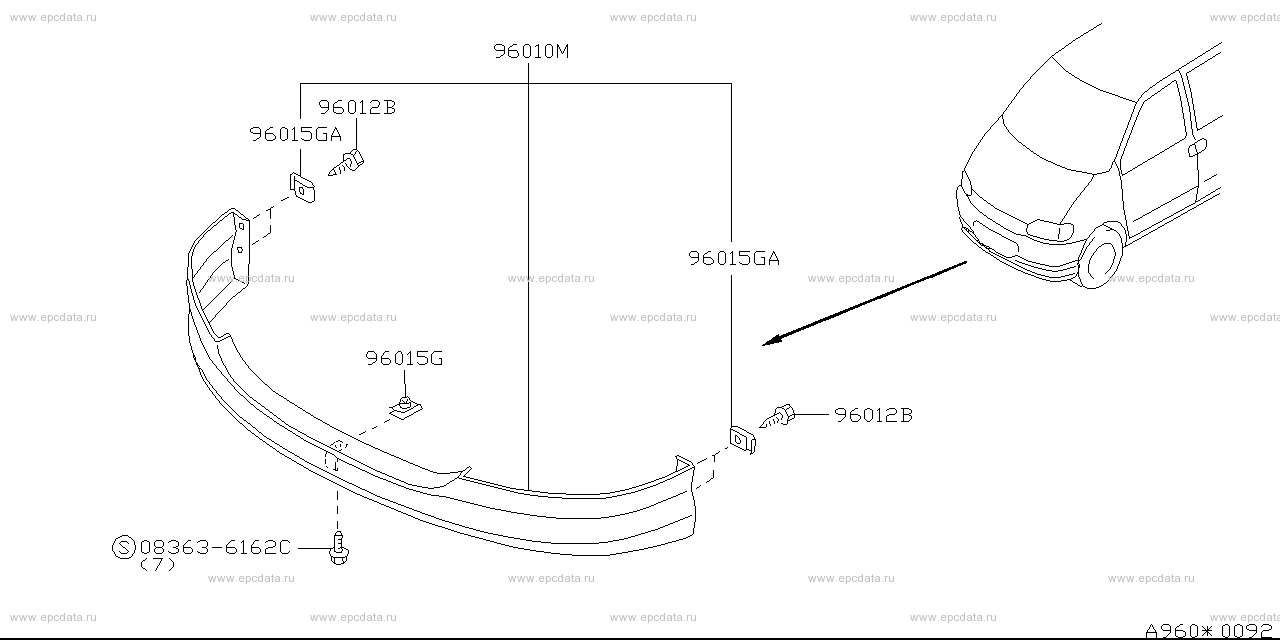

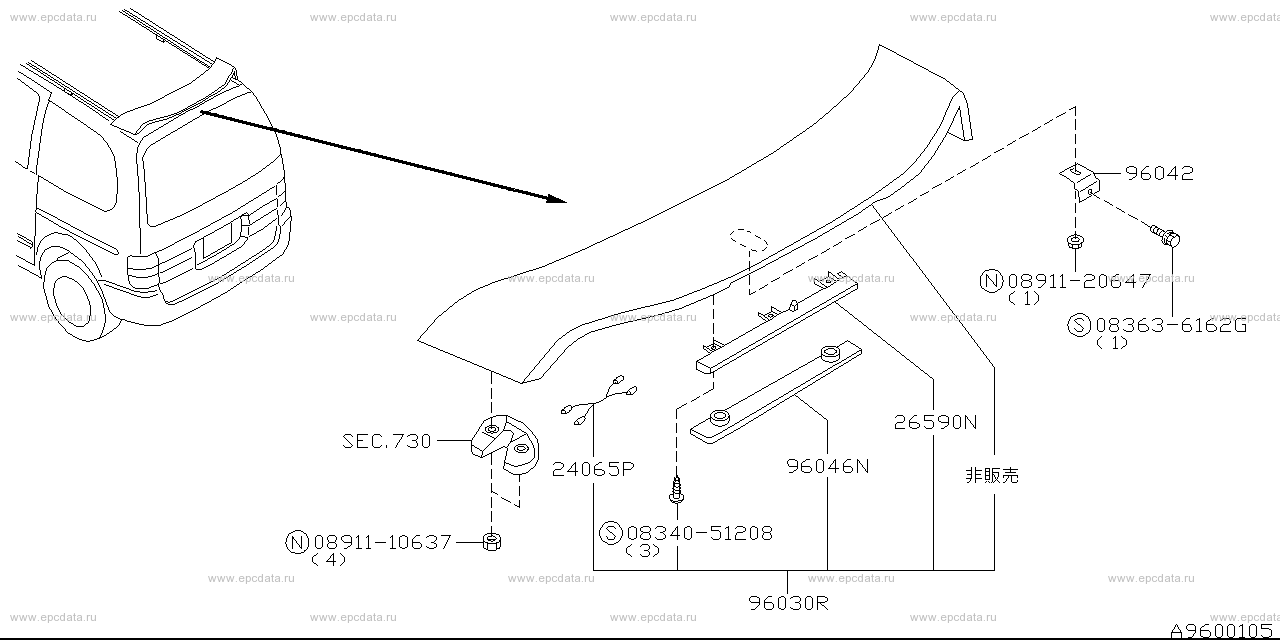

Scheme 960-_001 Scheme 960-_002 Scheme 960-_003
Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998標準 仕様
W +4DV +5DV01.1998 - ...標準 仕様

Open full screen pictureOpen full screen picture
Up to the top

083636162G
0851351697
0891120647
24065P - harness, sub
26590N - lamp assembly stop high mounting
96027 - spacer, air spoiler center
96028 - spacer, air spoiler side RH
96029 - spacer, air spoiler side LH
96030R - air spoiler assembly, roof
96032H - grommet, screw
96042 - bracket, roof air spoiler
96046N - cover, roof air spoiler

Applies for modelsManufacture periodSpec
*W.FX04.1996 - 01.1998ハイウエイスター 仕様

Open full screen pictureOpen full screen picture
Up to the top

083636162C
96010M - air spoiler, front
96012B - screw
96015G - nut, spring
96015GA - nut, spring

Applies for modelsManufacture periodSpec
W.FX2 +4DV +5DV01.1998 - ...FINO 仕様

Open full screen pictureOpen full screen picture
Up to the top

0834051208
083636162G
0891110637
0891120647
24065P - harness, sub
26590N - lamp assembly stop high mounting
96030R - air spoiler assembly, roof
96042 - bracket, roof air spoiler
96046N - cover, roof air spoiler

Nissan Vanette Serena genuine parts
